1/32 scale motor chart?

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • RichD
    replied

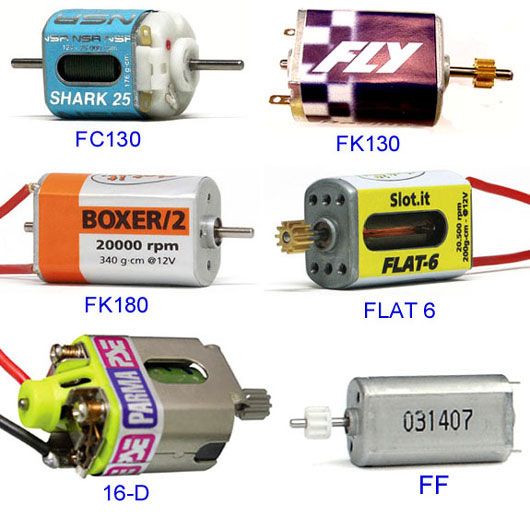

    Here are some pictures.

    Leave a comment:


  • LegOutOfBed
    replied
    Yep we all use that database - thanks to Robert and all who put it together,
    What you can do for theory comparison at least, is compare motors not on the chart, by calculating the wattage if needed from the manufacturers specification.
    The new NSR and Slot.it motors for instance, declare both the rpm and the g/cm torque specification.
    From there you can just use a simple spreadsheet to insert those values, and it calculates the wattage for you, to compare with the motors in the database.
    eg NSR Shark 21.5k Short can motor (FC style) to suit any application where FC130 mabuchi style motors are used
    21,500rpm 164g/cm @ 12v
    Some resellers actually provide the wattage number anyway (for this motor it is 8.82 watts. But when they don't you can calculate it yourself using this

    It looks like this, just replace the RPM and torque numbers in the pre-filled examples with those of your motor.
    Click image for larger version

Name:	motorpower.jpg
Views:	312
Size:	46.8 KB
ID:	13967


    Leave a comment:


  • War Eagle River
    replied
    Thanks Harry! The go to Motor reference for slotters!

    Leave a comment:


  • HomeRacingWorld
    replied
    Has not been updated in awhile, but a very good list. Been around for years.

    Slot Car News Motor List

    Not much on the commercial motors. Mostly dealing with our 1/32.

    Leave a comment:


  • red73mustang
    started a topic 1/32 scale motor chart?

    1/32 scale motor chart?

    So this may have come up before but has anyone created a comprehensive guide to the different types of 1/32 scale motors? I mean something that show pictures of different types like 130, FK-130 sizes, 16D Slim Can, Long Can types, NC2, Johnson, Pirhana, Mabuchi, Pitman, Parms Death Star as well as cross references? I'm sure I'm mixing types of motors with manufacturers so hopefully someone has done most of the work .
